Thermal Cut Out Switch For Fan Motor And Electric Water Pump 250V
5A-10A 50-150 C
Quick Detail:
| Model | H20 |
| Reset Type | Auto Reset |
| Single Pole,Single Throw(SPST) |
| Case Material: | Plastic or Metal |
| Rated Voltage & Current | 250V AC 5A/10A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 45～150℃ |
| Temperature tolerance | ±5.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 10,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:
H20 thermal cutoff switch uses high sensitive disk-shaped bimetal strip as the temperature-sensing element. It is composed of bimetal strip, moveable contact, stationary contact piece, fixed base, moveable spring piece, case and temperature
resistance lead wire.The bimetal strip is fixed on the base, which
can maintain the consistency of disconnection and reset temperature
after long-term use. Its' main function is overheating, overload
protection.
Working principle: when the temperature rises to a certain value,
the bimetal strip will instantly jump off and the contact will move
quickly to disconnect the circuit. When the temperature falls to a
certain value, the bimetal strip will be reset and the contact will
return to the original state to achieve the purpose of switching
the circuit. Its light weight, compact design maintains the
lightweight, sealed housing of the whole device, and is resistant
to drying, maintaining the accuracy and high reliability of
disconnection and reset throughout its life.
Product features: H20 theraml overload prtoector is a temperature
control switch developed by imported thermal bimetal, with small
size, rapid action, accurate temperature control and long life
cycle.
Specifications:

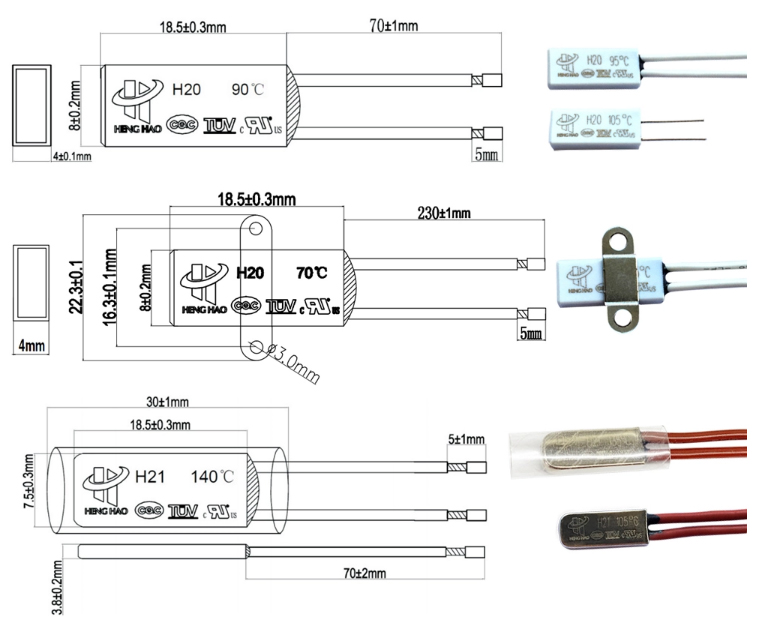

1. Dimensional Outline
2. Structural Drawing
| No. | Part Name | Material | Qty |
| 1 | Lead wire | 0.75mm² black silicon wire | 2 |
| 2 | Sealing | Epoxy resin | A few |
| 3 | Insulation blcok | Ceramic | 1 |
| 4 | Moveable contact | AgNi10/Cu | 1 |
| 5 | Moveable spring piece | Beryllium bronze | 1 |
| 6 | Case | Plastic | 1 |
| 7 | Stationary Contact piece | AgNi10/Cu | 1 |
| 8 | Base | Brass H62 | 1 |
| 9 | Bimetal strip | BR-1 | 1 |
3. Action Temperature Table
| H20 & H21 Series |
|
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 40±5℃ | ≥27℃ | 110±5℃ | 73±15℃ |
| 45±5℃ | ≥27℃ | 110±5℃ | 73±15℃ |
| 50±5℃ | ≥30℃ | 115±5℃ | 76±15℃ |
| 55±5℃ | ≥30℃ | 120±5℃ | 80±15℃ |
| 60±5℃ | 40±15℃ | 125±5℃ | 83±15℃ |
| 65±5℃ | 43±15℃ | 130±5℃ | 86±15℃ |
| 70±5℃ | 46±15℃ | 135±5℃ | 90±15℃ |
| 75±5℃ | 50±15℃ | 140±5℃ | 93±15℃ |
| 80±5℃ | 53±15℃ | 145±5℃ | 96±15℃ |
| 85±5℃ | 56±15℃ | 150±5℃ | 100±15℃ |
| 90±5℃ | 60±15℃ | | |
| 95±5℃ | 63±15℃ | | |
| 100±5℃ | 67±15℃ | | |
| 105±5℃ | 70±15℃ | | |
| Remark : |
| Reset Temperature: 2/3 of Action Temperature, tolerance is±15℃ or
customized. |
Applications:
1. Electric motors
2. Induction cooker
2. Warm handbag
3. Vacuum cleaner
4. Soybean milk machine
5. Ballast
6. Washing machine motor
7. Air conditioner fan motor
8. Transformer, ballast
9. Induction cooker
10. Electric heating belt
11. Health care equipment
12. Pump fan
13. Battery
14. Power tools
15. Heating pad
Competitive Advantages:
1. Fast temperature sensing
2. Accurate temperature control
3. Large control current
4. Low contact resistance
5. Safe and reliable
6. Small size, easy to install
7. No arc discharge
8. Long life cylces more than 10,000 times
9. Anti-vacuum dipping process, can be dipped with the motor
10. There are two types of normally closed and normally open can
meet customers' different requirements
11. The length and specifications of lead wire can be customized
12. Substitute SENSATA 7AM,17AM,SEKI St22 series
Notes:
1. To avoid affecting the performance of the product, please do not
collapse or deform the plastic or metal case when install H20 and
H21 thermal overload protector.
2. To avoid leakage of electricity, please do not remove the
insulation tube when install H21 thermal overload protector.
