250V 10A / 16A Snap Action Thermal Switch For Electric Mobile
Battery, UL Approved
Quick Detail:
| Model | KSD301 |
| Reset Type | Auto Reset |
| Single Pole,Single Throw(SPST) |
| Body Material: | Bakelite or Ceramic |
| Rated Voltage & Current | 250V AC 10A/16A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 0～150℃ (Bakelite Body),0～250℃ (Ceramic Body) |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:
KSD301 thermal switch’s Principle and structure
The main principle of KSD301 series thermostat is that one function of bimetal discs is snap action under the
change of sensing temperature. The snap action of disc can push the
action of the contacts through the inside structure, and then
caused on of off the circuit finally. The main characteristic are
the fixation of working temperature, the reliable snap action, less
flashover longer working life and less radio interference.

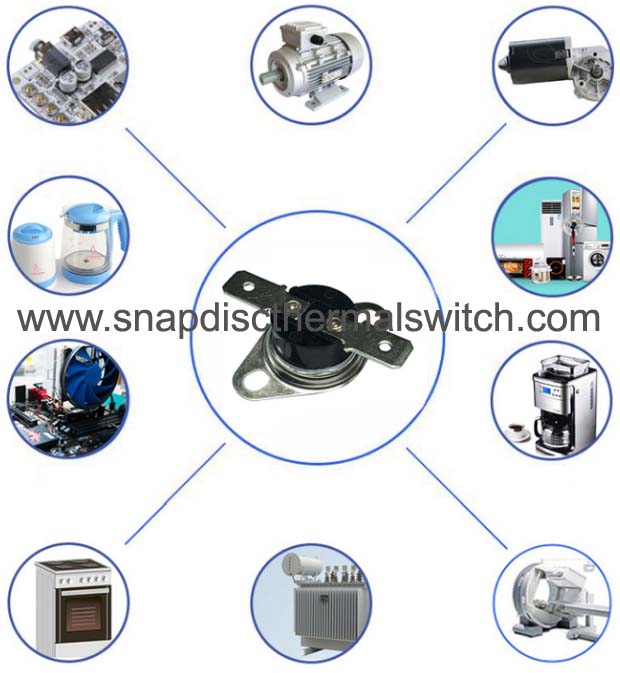

KSD301 thermal switch’s application
1.Household electric appliances: water dispenser,electric water
pots,toaster,dishwasher,drying machine, disinfection cabinet,
microwave oven, electric kettle, electric caldron,
refrigerator,air-condition,laminator etc.
2. Office equipment
3. Car seat heat, car deicer
KSD301 thermal switch’s specification
1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2. Action Temperature: -10~300 ℃, Temperature accuracy: ±3 ±5 ±10℃.
3. Recovery and action temperature difference:
A. Auto reset: 8 to 100℃(Optional),Temperature accuracy: ±3 ±5 ±10℃.
B. Manual reset
4. Terminal
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series
of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
5. Life cycle: ≥100000
6. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding
(Normal State)
7. Circuit resistance: ≤50mΩ
8. Insulation resistance: ≥100mΩ
9. Normally closed or Normally open
10. Protection degree: IP00
11. Two kinds of body: plastic or ceramic.
12. Temperature sensor face: Aluminum cap or copper head.
13. Holder: without holder, free holder, fixed holder.
KSD301 thermal switch High accuracy; Small size and light weight; safe and reliable; no
arcing;long life and less disturb to wireless.
Specifications:
1. Dimensional Outline
2. BOM
| No. | Part No. | Part Name | Material | Qty. |
| 1 | KSD301-01 | Body | Plastic | 1 |
| 2 | KSD301-02 | Guide Frame | Bakelite | 1 |
| 3 | KSD301-03 | Cap | Aluminium | 1 |
| 4 | KSD301-04 | Bimetal Disc | Bimetal | 1 |
| 5 | KSD301-05 | Action Rod | Ceramic | 1 |
| 6 | KSD301-06 | Static Contact Plate | Brass | 1 |
| 7 | KSD301-07 | Ø3.5static contact point | AgCd012/Cu | 1 |
| 8 | KSD301-08 | Ø3.5moveable contact point | AgCd012/Cu | 1 |
| 9 | KSD301-09 | Movable Contact Plate | BeCu | 1 |
| 10 | KSD301-10 | Short Rivet | Red Copper | 1 |
| 11 | KSD301-11 | Long Rivet | Red Copper | 1 |
| 12 | KSD301-12 | 6.3*0.8 HorizontalTerminal | Brass | 2 |
| 13 | KSD301-13 | Moveable Bracket | (201)Steel | 1 |
3. Action Temperature Table
| Standard Temperature Sheet |
| KSD301 |
|
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 45±3℃ | 35±5℃ | 145±5℃ | 125±7℃ |
| 50±3℃ | 40±5℃ | 150±5℃ | 130±7℃ |
| 55±3℃ | 45±5℃ | 155±5℃ | 135±7℃ |
| 60±3℃ | 50±5℃ | 160±5℃ | 140±8℃ |
| 65±3℃ | 50±5℃ | 165±6℃ | 145±8℃ |
| 70±3℃ | 55±5℃ | 170±6℃ | 150±8℃ |
| 75±3℃ | 60±5℃ | 175±6℃ | 155±8℃ |
| 80±3℃ | 65±5℃ | 180±7℃ | 160±10℃ |
| 85±3℃ | 70±5℃ | 185±7℃ | 155±10℃ |
| 90±3℃ | 75±5℃ | 190±7℃ | 160±10℃ |
| 95±3℃ | 80±5℃ | 195±7℃ | 165±10℃ |
| 100±4℃ | 85±6℃ | 200±8℃ | 170±10℃ |
| 105±4℃ | 85±6℃ | 205±8℃ | 175±10℃ |
| 110±4℃ | 90±6℃ | 210±8℃ | 180±10℃ |
| 115±5℃ | 95±6℃ | 215±10℃ | 185±10℃ |
| 120±5℃ | 100±6℃ | 220±10℃ | 190±10℃ |
| 125±5℃ | 105±6℃ | 230±10℃ | 200±10℃ |
| 130±5℃ | 110±6℃ | 240±10℃ | 205±12℃ |
| 135±5℃ | 115±6℃ | 250±10℃ | 210±15℃ |
| 140±5℃ | 120±7℃ | | |
| Remark : |
| 0-60℃±5℃: Reset Temperature=Action Temperature-10℃ |
| 60-120℃±5℃: Reset Temperature=Action Temperature-15℃ |
| 120-160℃±5℃: Reset Temperature=Action Temperature-20℃ |
| 160-200℃±7℃: Reset Temperature=Action Temperature-25℃ |
| 200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃ |
