2410 0603 250v Pcb Surface Mount Ceramic Slow Blow Smd Fuse For LED Driver

Quick Detail:

Description:

SMD fuse (Fusible type SMD fuse) is basically the same function as the normally used fuse, it can work normally at the rated current (when the circuit is normal), it will fuse automatically when the circuit failure reaches or exceeds the fusible current value, in the meantime, the circuit will be cut off, so that can protect the safety of the appliances and avoid the further expansion of the fault. SMD fuse is an innovative fuse with high technology content in fuse products. It is made of thin film with ultra-low internal resistance, suitable for overcurrent protection, such as surge. SMD fuse is commonly used in computer peripherals, mobile phones and other communication equipment, digital cameras, monitors, batteries, etc. According to the fuse speed, SMD fuses can be devided into five types: special slow fuse (generally expressed by TT), slow fuse (generally expressed by T), medium fuse (generally expressed by M), fast fuse (generally expressed by F) and special fast fuse (generally expressed by FF).

Specifications:

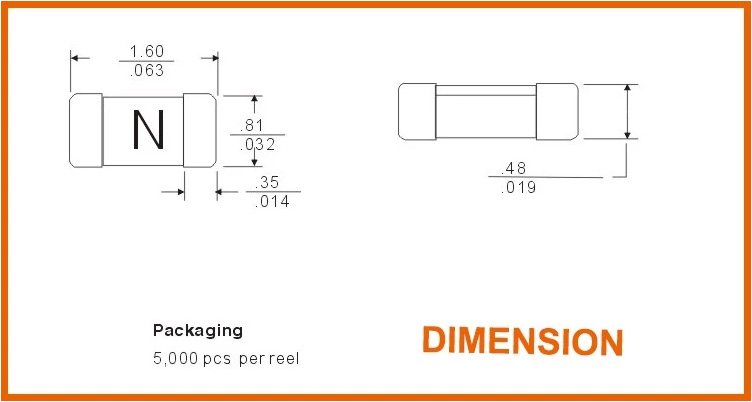

1. Dimensional Drawing

2. BOM

2. Time-current characteristics

3. 24F Series Time-current Curve

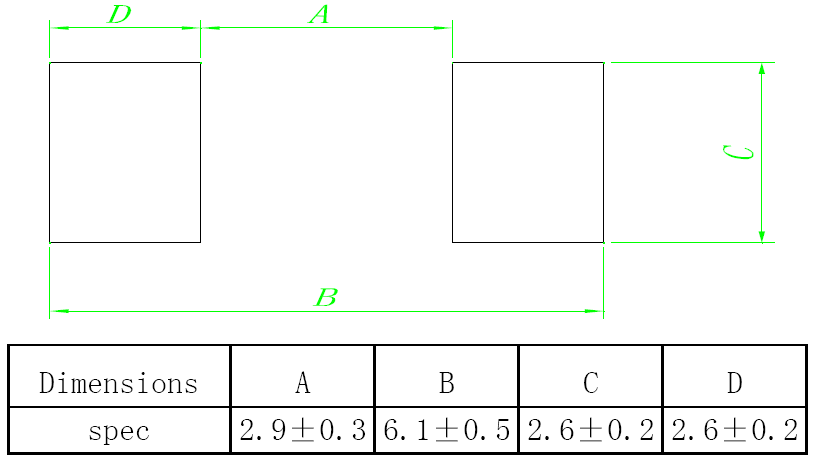

4. Installation Way and Parameters

4.1 Propose that the following picture installation way is installed

4.2 Soldering Conditions

Wave solder: 260℃, ≤5s

Hand solder: 360℃, ≤1s

5. Environmental Characteristics

Temperature-Current Curve

5. Package

1K Pieces taped and reeled in one box, 10K / External Carton

Application:
● Computer peripheral products
● Mobile phones
● Digital cameras
● Monitors
● Batteries
● LED driver

● Notebook / Laptops

● Office electronic equipment

Competive Advantages:
● Easy to install
● Fast Reaction

● High reliability

● Hihg accuracy
● Wide application

● ROHS complaint

● Wide operating temperature range

Tag:
Fuse Resistor, Fusible Cutout, Fusible SMD fuse
