Single Phase Two Stage RFI Power Line Noise EMI Filter For Air Sterilizer

Quick Details:

Description:

EMI MEC filter, also known as electromagnetic interference filter, network filter, network noise filter and so on, or collectively known as EMI filter.The power supply EMI filter is a low-pass filter, which transmits the dc power, 50Hz or 400Hz power to the equipment without attenuation, greatly attenuating the incoming EMI signal through the power supply, and protecting the equipment from its harm.At the same time, EMI signals generated by the equipment can be effectively controlled to prevent it from entering the power grid, polluting the electromagnetic environment and harming other equipment.EMI filter of power supply is an indispensable component to help electromagnetic equipment and systems meet electromagnetic compatibility standards, such as IEC, FCC, VDE, mil-std-461, GB9254 and GB6833. PE2100-20-06 filter rated currents from 6A TO 100A, it has various terminal options of faston, screw, and wire.

Specifications:

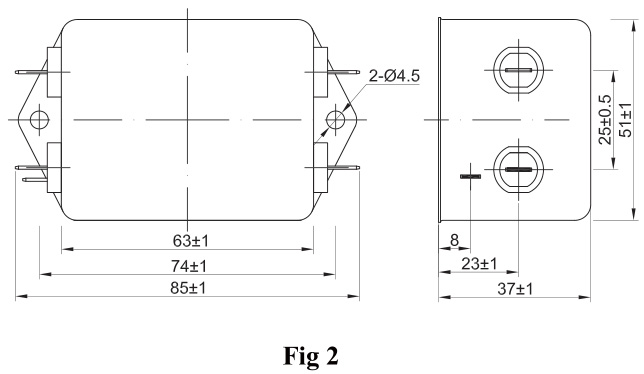

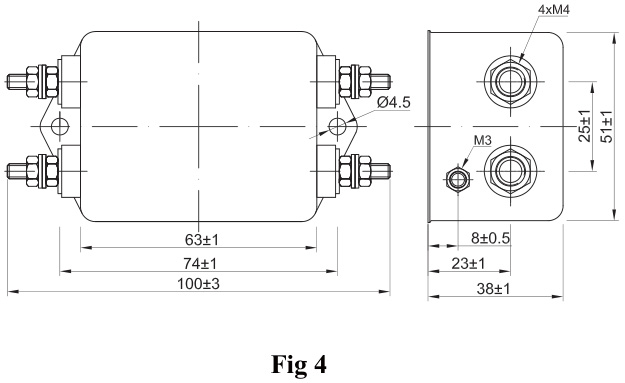

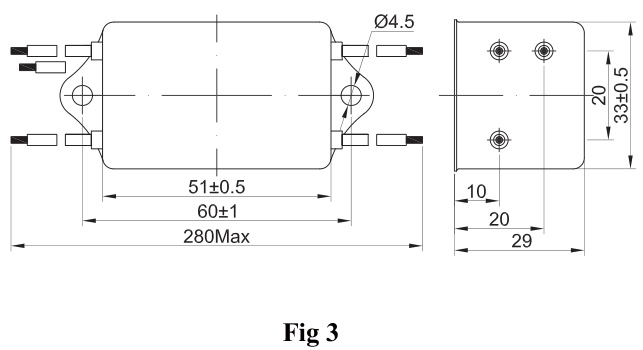

1. Outline Drawing and Dimensions:
All dimensions in mm; 1 inch=25.4mm

2. Electrical Schematic:


3. Filter Selection Table:

4. Product Comparison




4. EMI EMC Filter Packaging:
Packaging Details
1. Inner: blow moulding plate
2. Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
3. Customized packaging acceptable
Port: Shenzhen,China




Application:

1. Office Equipment: Printers; photocopiers; fax machine; computer etc
2. Household Equipment: Soymilk; coffee machine; Microwave etc
3. Single Phase Motor Drive,Power Supply,Led Drive,Inverter,Converter etc
4. Other : Biological safety cabinets;Air sterilizer;Sterilizer;Diagnostic System;Water Purifier;Fitness Equipment etc
5. B type for Medical Equipment
Competitive Advantage:
1. Compact unit,light weight,low price,easy to install
2. Rated currents from 6 to 100A
3. Optional medical versions B type
4. Various terminal options: faston / screw/ wire
5. Low leakage current and high quality components ensure the safety and reliability of filters.

Tag:
Power supply EMI filter, EMI Power line filter, Power line filter, Noise power line filter, Rejector,
Electromagnetic interference filter, Network filter, Network noise filter
