KSD301S Manual Reset Thermal Switch, 250V 10A Temperature Cut out
Switch
Quick Detail:
| Model | KSD301S |
| Reset Type | Manual Reset |
| Single Pole,Single Throw(SPST) |
| Body Material: | Bakelite or Ceramic |
| Rated Voltage & Current | 250V AC 10A/16A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 0～150℃ (Bakelite Body),0～250℃ (Ceramic Body) |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:
KSD301S snap dics thermal switch is a kind of miniature
hermetically sealed bimetal temperature limiter (1/2" disc). It is
of single-pole single-throw structure and works under resistive
load. It is a snap-action thermostat with a bi-metal disc as the
temeprature sensing element. It is manual reset type. Its main
working principle is to control the temperature by opening the
bi-metal strip. It stays at normally closed status, it opens when
temeprature rising, and it will be reseted by manual.This safety
limiter is in wide use in a great variety of compact type home
appliances, such as coffee maker, water dispenser, toaster,
microwave oven, electric pad and portable icebox etc., to provide
temperature control or temperature protection.(KSD301)
Applications:
● Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric
Steamer etc.
● Electric Water Boiler, Room Heater,Waffle Baker etc.
Specifications:

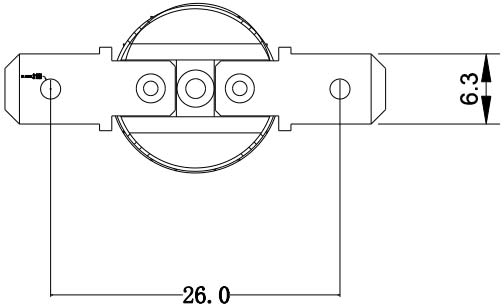

1. Dimensional Outline
2. Technical Requirements
| Model | KSD301S |
| OFF Temprature | 65±5℃ |
| Rated Voltage & Current | 250V AC 10A |
| Reset Type | Manual Reset |
| Contact Type | Normally Closed |
| Body Material | Bakelite |
| Bracket | Without Bracket |
| Terminal | 6.3*0.8mm, Horizontal |
| Test Voltage | ≥ 1500V / min (Normality) |
| Product Executive Standard: | UL873, CSA C22.2 NO 2493,EN60730-1 2000+AⅡ, EN60730-2-9:2002, GB14536.1-2008 idt IEC 730-1, GB14536.10-2008 idt IEC 730-2-9-1992, |
3. Action Temperature Table
| Standard Temperature Sheet |
| KSD301 |
|
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 45±3℃ | 35±5℃ | 145±5℃ | 125±7℃ |
| 50±3℃ | 40±5℃ | 150±5℃ | 130±7℃ |
| 55±3℃ | 45±5℃ | 155±5℃ | 135±7℃ |
| 60±3℃ | 50±5℃ | 160±5℃ | 140±8℃ |
| 65±3℃ | 50±5℃ | 165±6℃ | 145±8℃ |
| 70±3℃ | 55±5℃ | 170±6℃ | 150±8℃ |
| 75±3℃ | 60±5℃ | 175±6℃ | 155±8℃ |
| 80±3℃ | 65±5℃ | 180±7℃ | 160±10℃ |
| 85±3℃ | 70±5℃ | 185±7℃ | 155±10℃ |
| 90±3℃ | 75±5℃ | 190±7℃ | 160±10℃ |
| 95±3℃ | 80±5℃ | 195±7℃ | 165±10℃ |
| 100±4℃ | 85±6℃ | 200±8℃ | 170±10℃ |
| 105±4℃ | 85±6℃ | 205±8℃ | 175±10℃ |
| 110±4℃ | 90±6℃ | 210±8℃ | 180±10℃ |
| 115±5℃ | 95±6℃ | 215±10℃ | 185±10℃ |
| 120±5℃ | 100±6℃ | 220±10℃ | 190±10℃ |
| 125±5℃ | 105±6℃ | 230±10℃ | 200±10℃ |
| 130±5℃ | 110±6℃ | 240±10℃ | 205±12℃ |
| 135±5℃ | 115±6℃ | 250±10℃ | 210±15℃ |
| 140±5℃ | 120±7℃ | | |
| Remark : |
| 0-60℃±5℃: Reset Temperature=Action Temperature-10℃ |
| 60-120℃±5℃: Reset Temperature=Action Temperature-15℃ |
| 120-160℃±5℃: Reset Temperature=Action Temperature-20℃ |
| 160-200℃±7℃: Reset Temperature=Action Temperature-25℃ |
| 200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃ |
Competitive Advantage:
1. Small size and expedient installation
2. High temeprature resistance
3. High reliability
4. Long life cycles
5. ROHS compliant
6. Wide application
