5K 50*30 Brass Cylindrical Probe NTC Temperature Sensor for
Refrigerators with CE
Quick Details:
| R value R25 | 1KΩ~1400KΩ (1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ)etc. |
| B value R25/50 | 3270K~4650K(3270K,3380K,3470K,3550K,3700K,3950K,4200K,4650K) |
| R25 accuracy | ±1%,±2% |
| B value accuracy | ±1% |
| Temperature Range | -40~+300℃ |
| Probe size | 6*50mm / 6*100mm / 7*25mm / 8*25mm, or Customized |
| Probe material | Stainless steel, copper, copper plated nickel, , ABS, PVC, Epoxy |
| Wire | PVC, TPE, Silicon, or Customized |
| Connector | Molex,JST,DuPont,CWB,CJT etc. |
| Drivepipe | Heat shrinkable tube;PVC tube,;glass fiber tube;teflon tube |
Description:
NTC Temperature Sensor is a detection element that feeds back the
results to the system. It is also called thermistor or probe. Its
principle is the resistance decreases rapidly when the temperature
rises. NTC(Negative Temperature CoeffiCient)refers to thermistor
phenomenon and material with negative temperature coefficient, and
the resistance decreases exponentially when the temperature rises. NTC temperature sensor is mainly used in household air conditioner,
auto air conditioner, refrigerator, stove, deep fryer, induction
cooker, soybean milk machine, electric oven, kitchen utensils and
appliances, floor heating,3d printers etc. temperature measurement and control.
Specifications:

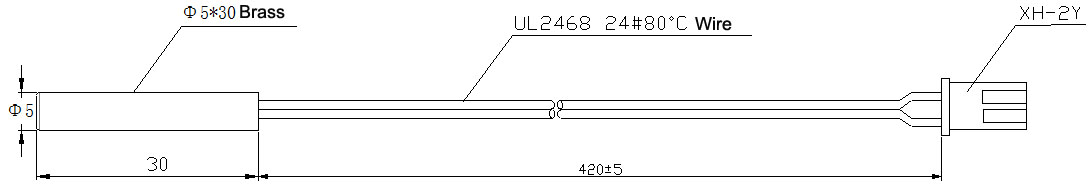

1. Overall Dimensions(mm)
2. BOM
| Part Name | Material | QTY |
| Probe | Φ5*30 brass | 1PCS |
| Resistance | R25=5KΩ±2% B25/50=3470K±1% Diode | 1PCS |
| Lead Wire | UL2468 24# ℃ double wiers black | 450mm |
| Coating | AZ-1187 Black | About 0.2g |
| Connector | XH-2Y(White color) | 1PCS |
3. Electrical Specification:
| No. | Item | Sign | Test Condition | Min. | Normal value | Max. | Unit |
| 3-1. | Resistance at 25℃ | R25 | Ta=25±0.05℃ PT≦0.1mw | 4.9 | 5 | 5.1 | KΩ |
| 3-2. | B Value | B25/50 |  | 3435.5 | 3470 | 3504.5 | K |
| 3-3. | Dissipation factor(in air) | σ | Ta=25±0.05℃ | 3 | / | / | mW/℃ |
| 3-4. | Time constant(in water) | τ | 25℃→50℃ T1=25+(50-25)×63.2% =40.8℃ | / | / | 5 | Sec |
| 3-5. | Insulation resistance | / | 500VDC | 100 | / | / | MΩ |
| 3-6. | dielectric strength test | / | 3750V AC 0.5mA | 5 | / | / | S |
| 3-7. | Operating temperature range | / | / | -30 | / | 125 | ℃ |
4. TEMPERATURE VS RESISTANCE TABLE
| Resistance 5k Ohms at 25deg. C |
| Resistance Tolerance + / - 2 % |
| B Value 3470K at 25/50 deg. C |
B Value Tolerance + / - 1 % |
| Temp. | Rmax | Rnor | Rmin | Temp. (deg. C) | Rmax (k Ohms) | Rnor (k Ohms) | Rmin (k Ohms) | Temp. (deg. C) | Rmax (k Ohms) | Rnor (k Ohms) | Rmin (k Ohms) |
| (deg. C) | (k Ohms) | (k Ohms) | (k Ohms) |
| -20 | 37.7588 | 36.6476 | 35.5656 | 21 | 5.9114 | 5.8437 | 5.7763 | 62 | 1.4051 | 1.3733 | 1.3421 |
| -19 | 35.871 | 34.8331 | 33.8218 | 22 | 5.6812 | 5.6184 | 5.5558 | 63 | 1.3618 | 1.3306 | 1.3 |
| -18 | 34.0895 | 33.1199 | 32.1745 | 23 | 5.4613 | 5.403 | 5.3448 | 64 | 1.3201 | 1.2894 | 1.2593 |
| -17 | 32.4076 | 31.5016 | 30.6178 | 24 | 5.251 | 5.197 | 5.1431 | 65 | 1.2798 | 1.2497 | 1.2201 |
| -16 | 30.8191 | 29.9724 | 29.146 | 25 | 5.05 | 5 | 4.95 | 66 | 1.2409 | 1.2114 | 1.1824 |
| -15 | 29.3184 | 28.527 | 27.7542 | 26 | 4.8615 | 4.8115 | 4.7615 | 67 | 1.2035 | 1.1744 | 1.1459 |
| -14 | 27.9 | 27.1602 | 26.4374 | 27 | 4.681 | 4.6311 | 4.5813 | 68 | 1.1673 | 1.1387 | 1.1108 |
| -13 | 26.5589 | 25.8672 | 25.1911 | 28 | 4.5081 | 4.4584 | 4.4088 | 69 | 1.1323 | 1.1043 | 1.0769 |
| -12 | 25.2904 | 24.6438 | 24.0113 | 29 | 4.3426 | 4.2931 | 4.2436 | 70 | 1.0986 | 1.0711 | 1.0442 |
| -11 | 24.0903 | 23.4857 | 22.8939 | 30 | 4.184 | 4.1347 | 4.0856 | 71 | 1.0661 | 1.0391 | 1.0126 |
| -10 | 22.9545 | 22.389 | 21.8353 | 31 | 4.032 | 3.983 | 3.9343 | 72 | 1.0346 | 1.0081 | 0.9822 |
| -9 | 21.879 | 21.3502 | 20.8321 | 32 | 3.8864 | 3.8377 | 3.7893 | 73 | 1.0043 | 0.9782 | 0.9528 |
| -8 | 20.8605 | 20.3659 | 19.881 | 33 | 3.7467 | 3.6985 | 3.6505 | 74 | 0.9749 | 0.9494 | 0.9244 |
| -7 | 19.8954 | 19.4328 | 18.9791 | 34 | 3.6128 | 3.565 | 3.5174 | 75 | 0.9466 | 0.9215 | 0.897 |
| -6 | 18.9808 | 18.5481 | 18.1235 | 35 | 3.4844 | 3.437 | 3.3899 | 76 | 0.9192 | 0.8945 | 0.8705 |
| -5 | 18.1137 | 17.709 | 17.3115 | 36 | 3.3612 | 3.3143 | 3.2677 | 77 | 0.8927 | 0.8685 | 0.8449 |
| -4 | 17.2913 | 16.9127 | 16.5408 | 37 | 3.243 | 3.1966 | 3.1505 | 78 | 0.8671 | 0.8434 | 0.8202 |
| -3 | 16.5111 | 16.157 | 15.8089 | 38 | 3.1296 | 3.0836 | 3.0381 | 79 | 0.8423 | 0.8191 | 0.7963 |
| -2 | 15.7708 | 15.4395 | 15.1138 | 39 | 3.0207 | 2.9753 | 2.9303 | 80 | 0.8184 | 0.7956 | 0.7733 |
| -1 | 15.0679 | 14.7581 | 14.4533 | 40 | 2.9161 | 2.8713 | 2.8268 | 81 | 0.7953 | 0.7728 | 0.751 |
| 0 | 14.4005 | 14.1108 | 13.8255 | 41 | 2.8157 | 2.7714 | 2.7276 | 82 | 0.7729 | 0.7509 | 0.7294 |
| 1 | 13.7666 | 13.4956 | 13.2286 | 42 | 2.7193 | 2.6756 | 2.6323 | 83 | 0.7512 | 0.7296 | 0.7086 |
| 2 | 13.1642 | 12.9108 | 12.661 | 43 | 2.6266 | 2.5835 | 2.5408 | 84 | 0.7303 | 0.7091 | 0.6884 |
| 3 | 12.5917 | 12.3547 | 12.121 | 44 | 2.5376 | 2.4951 | 2.453 | 85 | 0.71 | 0.6892 | 0.6689 |
| 4 | 12.0473 | 11.8258 | 11.6072 | 45 | 2.452 | 2.4101 | 2.3686 | 86 | 0.6904 | 0.67 | 0.6501 |
| 5 | 11.5296 | 11.3226 | 11.1181 | 46 | 2.3698 | 2.3284 | 2.2876 | 87 | 0.6714 | 0.6513 | 0.6318 |
| 6 | 11.0372 | 10.8436 | 10.6524 | 47 | 2.2907 | 2.2499 | 2.2097 | 88 | 0.653 | 0.6333 | 0.6142 |
| 7 | 10.5685 | 10.3877 | 10.2089 | 48 | 2.2146 | 2.1745 | 2.1349 | 89 | 0.6352 | 0.6159 | 0.5971 |
| 8 | 10.1225 | 9.9535 | 9.7863 | 49 | 2.1415 | 2.102 | 2.063 | 90 | 0.618 | 0.599 | 0.5806 |
| 9 | 9.6977 | 9.5399 | 9.3837 | 50 | 2.0711 | 2.0322 | 1.9938 | 91 | 0.6013 | 0.5827 | 0.5646 |
| 10 | 9.2932 | 9.1458 | 8.9998 | 51 | 2.0034 | 1.9651 | 1.9273 | 92 | 0.5851 | 0.5668 | 0.5491 |
| 11 | 8.9078 | 8.7702 | 8.6339 | 52 | 1.9382 | 1.9005 | 1.8634 | 93 | 0.5694 | 0.5515 | 0.5341 |
| 12 | 8.5406 | 8.4121 | 8.2848 | 53 | 1.8754 | 1.8384 | 1.8019 | 94 | 0.5543 | 0.5367 | 0.5196 |
| 13 | 8.1905 | 8.0707 | 7.9518 | 54 | 1.815 | 1.7786 | 1.7427 | 95 | 0.5396 | 0.5223 | 0.5055 |
| 14 | 7.8568 | 7.745 | 7.6341 | 55 | 1.7569 | 1.721 | 1.6857 | 96 | 0.5253 | 0.5084 | 0.4919 |
| 15 | 7.5385 | 7.4343 | 7.3308 | 56 | 1.7009 | 1.6656 | 1.6309 | 97 | 0.5115 | 0.4948 | 0.4787 |
| 16 | 7.2348 | 7.1377 | 7.0412 | 57 | 1.6469 | 1.6122 | 1.5781 | 98 | 0.4981 | 0.4818 | 0.4659 |
| 17 | 6.945 | 6.8546 | 6.7647 | 58 | 1.5949 | 1.5608 | 1.5273 | 99 | 0.4851 | 0.4691 | 0.4535 |
| 18 | 6.6684 | 6.5843 | 6.5005 | 59 | 1.5448 | 1.5113 | 1.4784 | 100 | 0.4725 | 0.4568 | 0.4415 |
| 19 | 6.4044 | 6.3261 | 6.2481 | 60 | 1.4965 | 1.4636 | 1.4313 | 101 | 0.4603 | 0.4449 | 0.4299 |
| 20 | 6.1522 | 6.0794 | 6.0069 | 61 | 1.45 | 1.4176 | 1.3859 | 102 | 0.4485 | 0.4333 | 0.4186 |
Application:
1. Air conditioners, Refrigerators, Freezers
2. Water heaters, Potable water heaters, Air warmers, Washers,
Disinfection cases
3. Washing machines, Driers, Thermotanks
Advantages:
1. Short response time, high temperature
2. Good coherence and interchange capability,high precision of
resistance and B-value
3. Double package technics,good quality of insulation and package
4. High capability of colliding and bending, high stability.
5. Customized specification
6. Operating temperature:-40-200degC
