12T 1206 32V Multi-layer Ceramic Construction Surface Mount Slow Acting SMD Fuse

Quick Detail:

Description:

SMD fuse is surface-mount metal oxide varistors that are used in applications requiring hi-energy and transient current capability. The AC rated parts are designed to operate continuously across AC power lines. The DC rated parts are suitable for automotive applications, and the series comprises a Nylon molded package with folded tin plated metal leads for soldering to a PCB. SMD fuse is a kind of the voltage sensitive resistor, symmetrical volt-ampere characteristics, its value as the voltage rises is nonlinear, when the voltage within a certain range to rise further, the phenomenon of "short circuit" more intense.

Specifications:

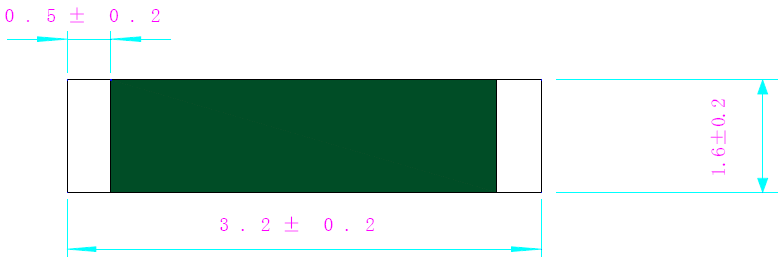

1. Dimensional Drawing

2. Catalogue No. and Indication

3. Time-current Characteristics

4. Time-current Curves

5. Environmental Characteristics
5.1 Temperature-Current Curve

5.2 Storage Conditions
Storage temperature: 5℃~35℃
Storage humidity: 25%~75%
Storage time: 6 months

6. Installation Way and Parameters
6.1 Propose that the following picture installation way is installed

6.2 Soldering Conditions
Wave solder: 260℃, ≤5s
Hand solder: 360℃, ≤1s

7. Package
3K Pieces taped and reeled in one box, 60K / External Carton


Applications:
● Load management equipment
● Automotive load dump devices
● Electronic/AC power meter
● Valves used in automatic car wash systems
● Plug-in cards
● Remote controls
● GFCIs (ground fault circuit interrupters)
● Motor compressors
● Drive and control electronics
● Switch mode power supplies and UPS

Competive Advantages:
● Easy to install
● Self--restoring
● Wide application
● Fast response(≤1ns)
● High transient current capability
● Low leakage current
● Completed certificates such as UL,VDE,SGS,etc and high quality available

Tag:
SMD Varistor, Thermistor, Mini Fuse, Micro Fuse,Thermal Fuse,Thermal Cutoff Fuse
