125A 16A 3 Deg C KSD301 Auto Reset Snap Disc Thermal Switch for
Refrigerator
Quick Detail:
| Model | KSD301 |
| Reset Type | Auto Reset |
| Single Pole,Single Throw(SPST) |
| Body Material: | Bakelite or Ceramic |
| Rated Voltage & Current | 250V AC 10A/16A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 0～150℃ (Bakelite Body),0～250℃ (Ceramic Body) |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:

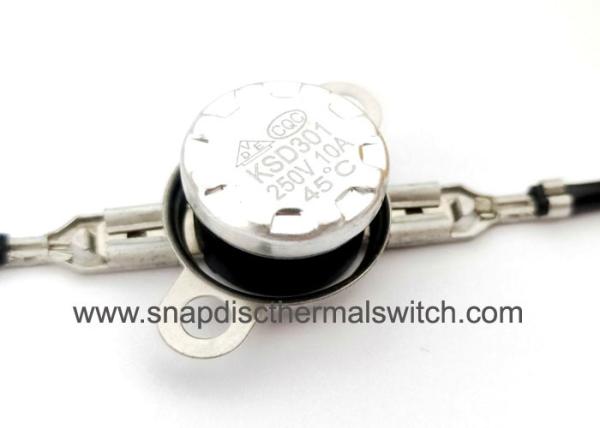

KSD301 series Snap Disc Thermal Switch is a snap-action thermostat
with a bi-metal disc as the temeprature sensing element. It can be
reseted automatically. Its main working principle is to control the
temperature by opening or closing the bi-metal strip. It stays at
normally closed/normally open status, it opens/closes when
temeprature rising and closes/opens when temperature decreasing. It
has the characteristics of snap action,high accuracy, long life
cycle.It is widely used in rice cooker, microwave oven, electric
water boiler,room heater, egg boiler and electric steamer,etc.
Applications:
● Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric
Steamer etc.
● Electric Water Boiler, Room Heater,Waffle Baker, Refrigerator,
etc,
● Air Compressor, Ford Fuel Filter, Water Tank, Frostproof Closet
etc.
Specifications:
1. Dimensional Outline
2. Technical Requirements
| Model | KSD301 |
| OFF Temprature | 3 +3 / -2℃ |
| ON Temperature | 8 +3 / -2℃ |
| Rated Voltage & Current | 125V AC 16A |
| Reset Type | Auto Reset |
| Contact Type | Normally Closed |
| Body Material | Bakelite |
| Bracket | Movable Bracket(B Type) |
| Terminal | 6.3*0.8mm, Horizontal |
| Test Voltage | ≥ 1800V / min (Normality) |
| Lead Wire | UL 3135 AWG 18, L1=L2=300mm |
| Product Executive Standard: | UL873, CSA C22.2 NO 2493,EN60730-1 2000+AⅡ, EN60730-2-9:2002, GB14536.1-2008 idt IEC 730-1, GB14536.10-2008 idt IEC 730-2-9-1992, |
3. Action Temperature Table
| Standard Temperature Sheet |
| KSD301 |
|
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 45±3℃ | 35±5℃ | 145±5℃ | 125±7℃ |
| 50±3℃ | 40±5℃ | 150±5℃ | 130±7℃ |
| 55±3℃ | 45±5℃ | 155±5℃ | 135±7℃ |
| 60±3℃ | 50±5℃ | 160±5℃ | 140±8℃ |
| 65±3℃ | 50±5℃ | 165±6℃ | 145±8℃ |
| 70±3℃ | 55±5℃ | 170±6℃ | 150±8℃ |
| 75±3℃ | 60±5℃ | 175±6℃ | 155±8℃ |
| 80±3℃ | 65±5℃ | 180±7℃ | 160±10℃ |
| 85±3℃ | 70±5℃ | 185±7℃ | 155±10℃ |
| 90±3℃ | 75±5℃ | 190±7℃ | 160±10℃ |
| 95±3℃ | 80±5℃ | 195±7℃ | 165±10℃ |
| 100±4℃ | 85±6℃ | 200±8℃ | 170±10℃ |
| 105±4℃ | 85±6℃ | 205±8℃ | 175±10℃ |
| 110±4℃ | 90±6℃ | 210±8℃ | 180±10℃ |
| 115±5℃ | 95±6℃ | 215±10℃ | 185±10℃ |
| 120±5℃ | 100±6℃ | 220±10℃ | 190±10℃ |
| 125±5℃ | 105±6℃ | 230±10℃ | 200±10℃ |
| 130±5℃ | 110±6℃ | 240±10℃ | 205±12℃ |
| 135±5℃ | 115±6℃ | 250±10℃ | 210±15℃ |
| 140±5℃ | 120±7℃ | | |
| Remark : |
| 0-60℃±5℃: Reset Temperature=Action Temperature-10℃ |
| 60-120℃±5℃: Reset Temperature=Action Temperature-15℃ |
| 120-160℃±5℃: Reset Temperature=Action Temperature-20℃ |
| 160-200℃±7℃: Reset Temperature=Action Temperature-25℃ |
| 200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃ |
Competitive Advantages:
1. Small size and expedient installation
2. High temeprature resistance
3. High reliability
4. Long life cycles
5. ROHS compliant
6. Wide application
