Long Life Cycles 70 CD JUC-31F Miniature Thermal Switch for
Overheat Protection
Quick Detail:
| Model | JUC-31F |
| Reset Type | Auto Reset |
| Rated Voltage & Current | AC 120V/220V 1A, DC 48V 1A |
| Contact Type | 1D(Normally Closed) or 1H(Normally Open) |
| AmbientTemperature | -55℃ ～+180℃ |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,CE |
Description:

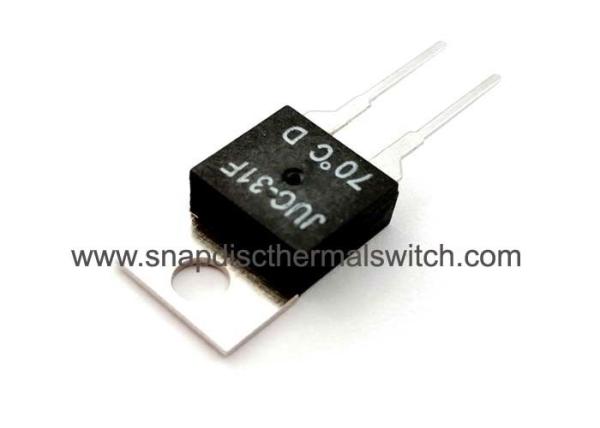

JUC-31F series Miniature Thermal Switch is a snap-action thermostat
with a bi-metal disc as the temeprature sensing element. Its main
working principle is to control the temperature by opening or
closing the bi-metal strip. It stays at normally closed/normally
open status, it opens/closes when temeprature rising and
closes/opens when temperature decreasing. It has the
characteristics of snap action,high accuracy, long life cycle, high
sensitivity, high reliability, small size, light weight, easy
installation. JUC-31F Miniature Thermal Switch has been granted
national patent, and has passed UL, TUV, CE, CQC, CB and ROHS. It
also has passed the 100,000 life test of UL laboratory. It is
widely used in printed circuit board equipment, power supply
equipment, audio amplifier, welding equipment, automation equipment
and instrumentation for temperature control and temperature
protection.
Applications:
● Printed circuit board equipment
● Power supply equipment
● Audio amplifier
● Welding equipment
● Automation equipment
● Instrument and apparatus
● Charger
● Switching power supply
● Telecom Power System
● Module power supply
● Medical power supply
● Current rectifier
Specifications:
1. Dimensional Outline
2. Action Temperature Table
| Operating temperature | Recovery temperature | Form of contract point | Rated load | Contract resistance | Insulation resistance | Dielectrics voltage-resistance | Testing mode: Speed of temperature rise and fall |
| 40℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 45℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 50℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 55℃±5℃ | 6℃～16℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 60℃±5℃ | 6℃～18℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 65℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 70℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 75℃±5℃ | 8℃～22℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 80℃±5℃ | 8℃～24℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 85℃±5℃ | 8℃～25℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 90℃±5℃ | 8℃～27℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 95℃±5℃ | 10℃～28℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 100℃±5℃ | 10℃～30℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 105℃±5℃ | 11℃～31℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 110℃±5℃ | 11℃～33℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 115℃±5℃ | 11℃～35℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 120℃±5℃ | 11℃～36℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
Competitive Advantages:
1. Small size and expedient installation
2. Snap action,high accuracy
2. High temeprature resistance
3. High reliability
4. Long life cycles of 100,000 times
5. ROHS compliant
6. Wide application
