Overheat Protection 250V KSD-01F Miniature Thermal Switch for
Sandwich Toasters
Quick Detail:
| Model | KSD-01F |
| Reset Type | Auto Reset |
| Rated Voltage & Current | AC 120V/220V 1A, DC 48V 1A |
| Contact Type | 1D(Normally Closed) or 1H(Normally Open) |
| AmbientTemperature | -55℃ ～+180℃ |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,CE |
Description:
KSD-01F Series Miniature Thermal Switch are designed for heating
and cooling equipment, room temperature or humidity regulation, and
industrial uses. KSD-01F Series Miniature Thermal Switch respond directly or indirectly to changes in temperature, humidity,
or pressure to effect temperature control of equipment or appliance
operation, etc. The KSD-01F Series can be investigated for
functioning during the normal operation (regulating) of the
controlled appliance or for functioning in the event of an abnormal
condition (limiting) of the controlled appliance. We use
international TO220/Y220 standard packingJUC-31F Miniature Thermal
Switch has been granted national patent, and has passed UL, TUV,
CE, CQC, CB and ROHS. It also has passed the 100,000 life test of
UL laboratory. It is widely used in printed circuit board
equipment, power supply equipment, audio amplifier, welding
equipment, automation equipment and instrumentation for temperature
control and temperature protection.
Specifications:

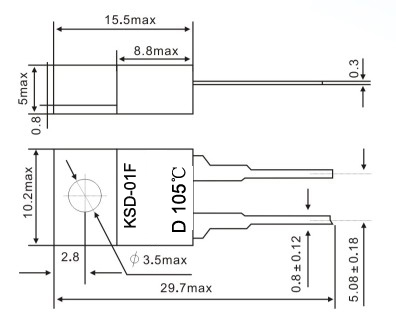

1. Dimensional Outline
2. Action Temperature Table
| Operating temperature | Recovery temperature | Form of contract point | Rated load | Contract resistance | Insulation resistance | Dielectrics voltage-resistance | Testing mode: Speed of temperature rise and fall |
| 40℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 45℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 50℃±5℃ | 5℃～15℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 55℃±5℃ | 6℃～16℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 60℃±5℃ | 6℃～18℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 65℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 70℃±5℃ | 7℃～20℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 75℃±5℃ | 8℃～22℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 80℃±5℃ | 8℃～24℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 85℃±5℃ | 8℃～25℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 90℃±5℃ | 8℃～27℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 95℃±5℃ | 10℃～28℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 100℃±5℃ | 10℃～30℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 105℃±5℃ | 11℃～31℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 110℃±5℃ | 11℃～33℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 115℃±5℃ | 11℃～35℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
| 120℃±5℃ | 11℃～36℃ | 1D,1H | 250VAC1A | ≤50mΩ | ≥100MΩ | 1500VAC | 5℃～8℃/min |
Applications:
1. Automatic drip coffeemakers
2. Water heaters
3. Sandwich toasters
4. Furnaces
5. Dishwashers
6. Boilers
7. Dryers
8. Electric heaters
9. Washing machines
10. Office equipment
11. Refrigerators
12. Automotive car seat heaters
13. Microwave ovens
Competitive Advantages:
1. Small size and expedient installation
2. Snap action,high accuracy
2. High temeprature resistance
3. High reliability
4. Long life cycles of 100,000 times
5. UL,CQC,VDE and RoHS certification approval
6. Wide application
