PE8000-10-1 10A250V General Purpose IEC Inlet EMI EMC Filter for TV Power Supply

Quick Details:

Description:

EMI MEC filter, also known as electromagnetic interference filter, network filter, network noise filter and so on, or collectively known as EMI filter.The power supply EMI filter is a low-pass filter, which transmits the dc power, 50Hz or 400Hz power to the equipment without attenuation, greatly attenuating the incoming EMI signal through the power supply, and protecting the equipment from its harm.At the same time, EMI signals generated by the equipment can be effectively controlled to prevent it from entering the power grid, polluting the electromagnetic environment and harming other equipment.EMI filter of power supply is an indispensable component to help electromagnetic equipment and systems meet electromagnetic compatibility standards, such as IEC, FCC, VDE, mil-std-461, GB9254 and GB6833.PE8000-10-01 rated currents from 1A to 10A. It has rear/front or snap-in mounting.(S and S1 type). Optional medical versions (B type) comply with the requirements of IEC/EN 6060-1 for creepage and clearance,leakage current and high potentian testing.

Specifications:

1. Outline Drawing and Dimensions:
All dimensions in mm; 1 inch=25.4mm

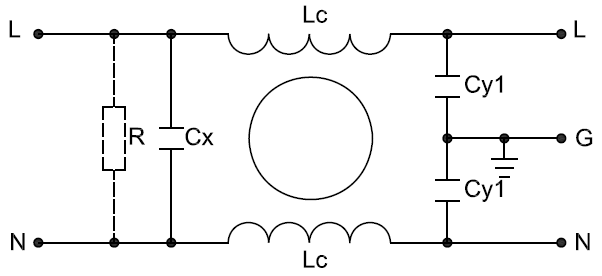

2. Electrical Schematic:


3. Filter Selection Table:

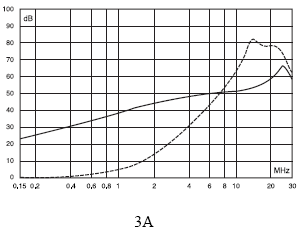

4. Insertion Loss in dB

5. EMI EMC Filter Packaging:
Packaging Details
1. Inner: blow moulding plate
2. Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
3. Customized packaging acceptable
Port: Shenzhen,China

Application:
1. Single-phase power supplies,switch-mode power supplies.
2. Small to medium-sized machines and household equipment
3. Protable electrical and electronic equipment.
4. Test and measurement equipment.
5. Medical equipment

Competitive Advantages:
1. Compact unit,light weight,low price,easy to install.
2. Rear/front or snap-in mounting.(S and S1 type)
3. High quality components ensure the safrty and reliability of filters.
4. Optional medical versions(B type)comply with the requirements of IEC/EN60601-1 for creepage and clearance,leakage current and high potentian testing.
5. Custom design acceptable
