17AM-KP 10A 250V 80 Deg C Electric Motor Thermal Switch for Heating Pad with PTC

Quick Detail:

Description:

Introduction:
17AM-K+PTC is developed on the base of 17AM-K, by equipping the heating element, which can make it have the power off protection and delay protection function. The protection is more reliable and more safe. 17AM+PTC can be applied for transformers; battery; lighting electrics; cleaning machine; water pump; electric tools; electric heating pad; and the household appliances.

Work Principle:
Due to the ambient temperature over high or current overload caused by the abnormal work of the electrics, the double metal inside the 17AM thermal protector will trip fast, the two contact break up to cut off the power, meanwhile, the voltage by breaking up the contact will be used for the PTC heating element, which will generate the sufficient heat to keep the protector on the trip status. Only the power is cut off, the contact can be connected again.(manaul reset function).

Specifications:

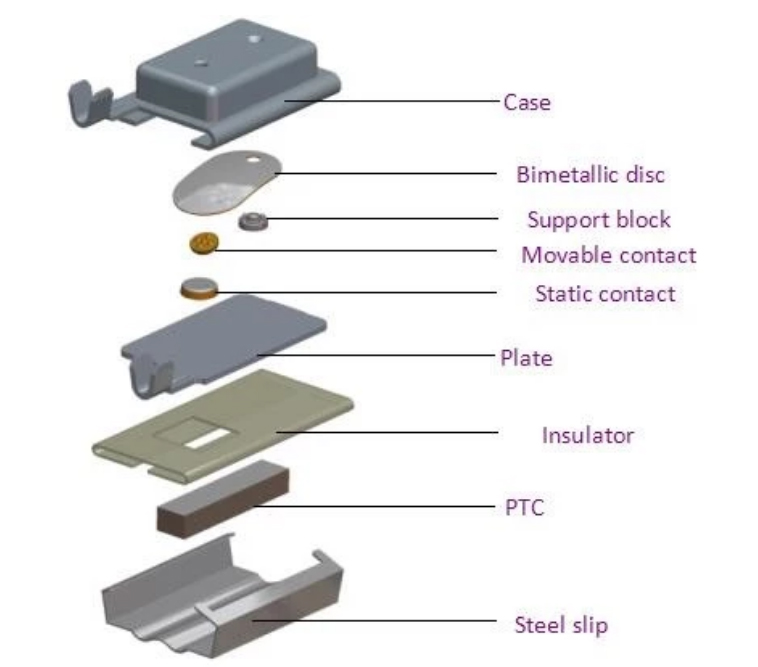

1. Structure and Dimensions

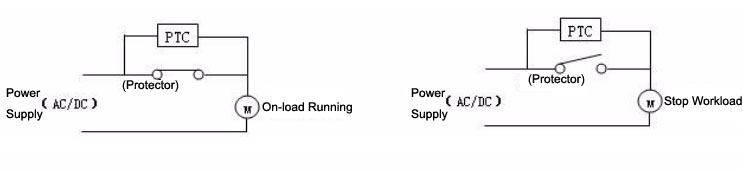

2. Electricalprinciple chart

3. Action Temperature Table

Why Choose us

Applicaiton:

Competitive Advantage:
1. Small size
2. Easy to install
3. Fast reaction
4. Low Resistance

5. ROHS Compliant

6. Reset temperature an lead wire can be customized

7. Power cut off protection and delay protection function;
8. Tiny type design, small size, convenient for installation;
9. The temperature sensibility is high, cut off the power fast

Tag:
