KSD9700 Temperature Controller Switch, H20 Thermal Cutoff Fuse 250V
5A 10A 50-150 Deg C
Quick Detail:
| Model | H20 |
| Reset Type | Auto Reset |
| Single Pole,Single Throw(SPST) |
| Case Material: | Plastic or Metal |
| Rated Voltage & Current | 250V AC 5A/10A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 45～150℃ |
| Temperature tolerance | ±5.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 10,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:
H20 serial universal and enhanced protectors with large metal
casing are composed of the thermal conductive metal casing,
bimetallic parts welded with silver alloy contact point, conductive
bracket, insulation fixation stand, fixed contact strip and heat
resistance cable. In case of abnormal operation, along with the
increase of the environment temperature to the set value, the
bimetallic parts perform quick action, open the contact point, and
disconnect the circuit. When the device is cooled to the
temperature for safe operation, the contact point will
automatically closes and recover normal operation.
Specifications:

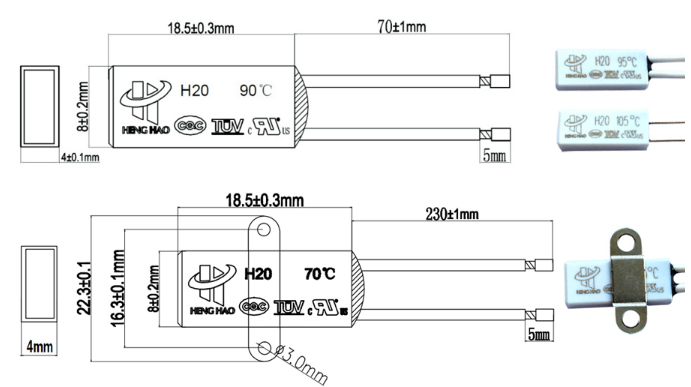

1. Dimensional Outline
2. Structural Drawing
| No. | Name | Material | Qty |
| 1 | Case | PBT | 1 |
| 2 | Moveable spring piece | Beryllium bronze | 1 |
| 3 | Bimetallic strip | BR-1 | 1 |
| 4 | Moveable contact | AgNi10/Cu | 1 |
| 5 | Sealing | Epoxy resin | Few |
| 6 | Lead wire | 0.75mm² black silicon wire | 2 |
| 7 | Base | Brass H62 | 1 |
| 8 | Stationary Contact piece | AgNi10/Cu | 1 |
| 9 | Insulation blcok | PBT-VG30 | 1 |
| 10 | Tinning | Tin | Few |
3. Action Temperature Table
| H20 |
|
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 45±5℃ | ≥33℃ | 110±5℃ | 75±15℃ |
| 50±5℃ | ≥35℃ | 115±5℃ | 80±15℃ |
| 55±5℃ | 42±6℃ | 120±5℃ | 85±15℃ |
| 60±5℃ | 45±8℃ | 125±5℃ | 85±15℃ |
| 65±5℃ | 48±10℃ | 130±5℃ | 90±15℃ |
| 70±5℃ | 50±12℃ | 135±5℃ | 95±15℃ |
| 75±5℃ | 53±14℃ | 140±5℃ | 100±15℃ |
| 80±5℃ | 55±15℃ | 145±5℃ | 100±15℃ |
| 85±5℃ | 60±15℃ | 150±5℃ | 105±15℃ |
| 90±5℃ | 65±15℃ | 150±5℃ | 110±15℃ |
| 95±5℃ | 70±15℃ | | |
| 100±5℃ | 70±15℃ | | |
| 105±5℃ | 75±15℃ | | |
| Remark : |
| Reset Temperature: 2/3 of Action Temperature, tolerance is±15℃ or
customized. |
Applications:
1. Chargeable battery
2. Ballast
3. Massager
4. Motor,transformer
5. Electric tools
6. Heat electric appliance
Competitive Advantages:
1. Miniature size and expedient installation
2. Various resistances of bimetal available
3. Safe and reliable
5. High sensitivity
4. Low contact resistance
5. Life cycles more than 10,000 times
6. ROHS compliant
6. Wide application
7. Gasketed case suitable for most impregnation processes
8. There are two types of normally closed and normally open can
meet customers' different requirements
9. The length and specifications of lead wire can be customized
10. Substitute SENSATA 7AM,17AM,SEKI St22 series
