10A 16A 250V Manual Auto Reset KSD301 Bimetal Thermal Thermostats for Coffee Machine

10A 16A 250V Manual Auto Reset KSD301 Bimetal Thermal Switch for Coffee Machine

Quick Detail:

Model	KSD301
Reset Type	Manual Reset
	Single Pole,Single Throw(SPST)
Body Material:	Plastic / Bakelite
Rated Voltage & Current	250V AC 10A/16A
Contact Type	Normally Closed(Open on Rise) or Normally Open(Close on Rise)
Operating Temperature Range	0～150℃ (Bakelite Body),0～250℃ (Ceramic Body)
Temperature differentials	8.5～55℃ (difference between off and on temperatures)
Temperature tolerance	±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance	≤50mΩ
Insulation Resistance	≥100MΩ
Dielectric Strength	≥1500V
Life Cycle	100,000 Cycles
Certificate	CQC,TUV,UL,VDE,ROHS,REACH

Decription:

The KSD301 series of jump thermostats are small bimetal thermostats, which are temperature relays. It uses the principle of instantaneous jumping of the disc-type bimetal disc under the action of temperature, the principle of instantaneous jumping, through the action of the mechanism, so that the contacts quickly act, to break or turn on the circuit. The purpose of the device is to break or switch on the circuit. Its working temperature is fixed, no adjustment is required; the action is reliable and crisp, the arc is small; the service life is long; radio interference is small.

Test method:

Sample is connected to the fixture of the equipment,and placed into
the test equipment (Hot current of air in the space of test should
be equipped with a stirrer and temperature is controllable).A
detect current about 10mA(no more then 100mA)is passed through the
sample and a thermometer is placed junction to the sample to
monitor the opening temperature .The temperature of the test
equipment is raised at the rate of 0.5～1℃ per minute until the
sample functioned.
Working Principle of KSD301 Series Temperature Thermostat:
When the electrical appliance works normally, the bimetallic sheet
is in the free state and the contact is in the closed / open state.
When the temperature reaches the operating temperature, the contact
is opened / closed, and the circuit is cut / closed, so as to
control the temperature. When the electric appliance cools to the
reset temperature, the contact will automatically close / open and
return to the normal working state.
Kindly Note:
1. No fluid is allowed to submerge inside the thermal control
switch. 2. Do not collapse, loosen or deform the top of cover
surface during installation to avoid affecting performance. 3. The
thermostat should be stored in a warehouse with RH less than 90%
and ambient temperature less than 40 ℃, which is ventilated, clean,
dry.

Specifications:

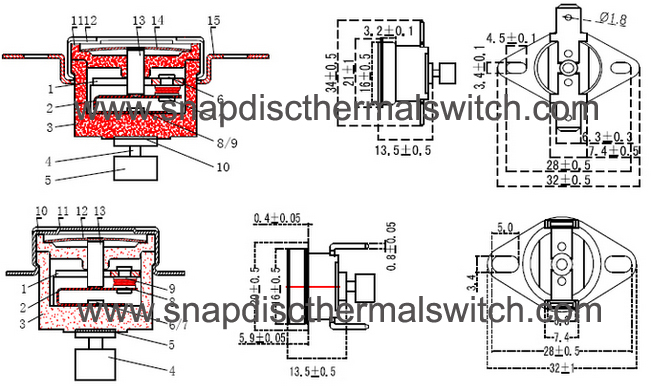

1. Dimensional Outline

2. BOM

No.	Part No.	Part Name	Qty.
1	KSD301-1	Unmoveable piece	1
2	KSD301-2	Spring Piece piece	1
3	KSD301-3	Base	1
4	KSD301-4	6.3mm Vertical Terminal	2
5	KSD301-5	Stationary Contact Ø3.5	1
6	KSD301-6	Moveable Contact Ø3.5	1
7	KSD301-7	Long Rivet(9.0)	1
8	KSD301-8	Short Rivet(5.0)	1
9	KSD301-9	Push rod	1
10	KSD301-10	Reset Button	1
11	KSD301-11	Guide frame	1
12	KSD301-12	M40.56 hexagon copper head	1
13	KSD301-13	Bimetal disc	1
14	KSD301-14	Action rod	1

3. Action Temperature Table

Standard Temperature Sheet
KSD301

Action Temperature	Reset Temperature	Action Temperature	Reset Temperature
45±3℃	35±5℃	145±5℃	125±7℃
50±3℃	40±5℃	150±5℃	130±7℃
55±3℃	45±5℃	155±5℃	135±7℃
60±3℃	50±5℃	160±5℃	140±8℃
65±3℃	50±5℃	165±6℃	145±8℃
70±3℃	55±5℃	170±6℃	150±8℃
75±3℃	60±5℃	175±6℃	155±8℃
80±3℃	65±5℃	180±7℃	160±10℃
85±3℃	70±5℃	185±7℃	155±10℃
90±3℃	75±5℃	190±7℃	160±10℃
95±3℃	80±5℃	195±7℃	165±10℃
100±4℃	85±6℃	200±8℃	170±10℃
105±4℃	85±6℃	205±8℃	175±10℃
110±4℃	90±6℃	210±8℃	180±10℃
115±5℃	95±6℃	215±10℃	185±10℃
120±5℃	100±6℃	220±10℃	190±10℃
125±5℃	105±6℃	230±10℃	200±10℃
130±5℃	110±6℃	240±10℃	205±12℃
135±5℃	115±6℃	250±10℃	210±15℃
140±5℃	120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃

Applications:

The Feature of 10A 16A 125V 250V Manual Automatic Switchable Reset Thermal Magnetic Trip KSD301 Series Thermostat Protector Switch for Small Appliances :

【With metal cap】This wing temperature sensor features stable performance, high
precision, small in size, light weight, high reliability, long
service life and low interference to wireless. KSD301 Thermostat
has double metal chip, speed dynamic type, sensitive, reliable,
stable action temperature, no arc phenomenon. 【High sensitivity】High sensitivity and reliability of pins. What’s more, there are
some engraved numbers and letter on the metal cap for the size
recognition. No fluid is allowed to submerge inside the thermal
control switch and cracks on the cap is unusable. 【Intelligent control】The thermostat has a built-in intelligent control panel, which can
be adjusted by pressing the button. it is very easy to operate and
does not require complicated operations. 【Professional design】The thermostat switch is designed to turn on and off automatically,
which makes it easier to control the temperature of the thermostat.
