KSD9700 Bimetal Thermal Switch Plastic / Metal Case 250V 5A (10A available) for Electric Appliance

Quick Detail:

Description:

KSD9700 serial thermal protectors with metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable.

Work Principle:

KSD9700 type bimetal thermal protector is using the double metal piece as e temperature sensing element. When the electrics work normally, the double piece is at the free status, the contact is at close/break off position. When the temperature rises to the action temperature, the double metal piece acts fast by the inside force caused by heating, open/close the contact, cut off/get through the power, the temperature protection function is raised. When the temperature lows to the reset temperature, the contact closes/breaks off automatically and recovery to normal work status.

Applications:

• Various motors
• Pumps, air compressors and cleaners
• Fluorescent ballasts and lightings
• Heating pad and electrical blankets
• Electrical tools, chargers and transformers
• Home and heating appliances

Competitive Advantages:

• Miniature size, easy to install

• Low resistance less than 50mohm

• Positive make and break with snap-action disc

• Positive make and break with snap action bimetal disc
• Repeatable temperature performance over life
• Available in metallic shell and plastic shell
• Temperature sensitivity for maximum design flexibility
• Wide selection of leads and imported Mylar insulating sleeves.

Specifications:

1. Dimensional Outline

2. Structural Drawing

Plastic Case Type	Metal Case Type
1. Lead wire 2. Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact 5. Movable Spring Plate 6. Bimetallic Strip 7. Plastic Case 8. Insulation Block 9. Baseplate	1. Lead 2.Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact 5. Movable Spring Plate 6. Bimetallic Strip 7. Metal Case 8. Insulation Block 9. Baseplate 10. Insulating Tube

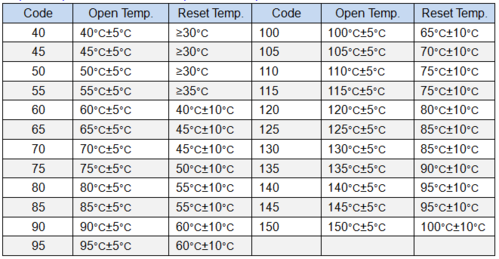

3. Action Temperature Table
