    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    Ask Lasest Price
    Brand Name : Yusheng
    Model Number : BK20
    Certification : UL, VDE, TUV, CB, CQC
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000 Piece/Pieces per Month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch


    Product Discription:

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

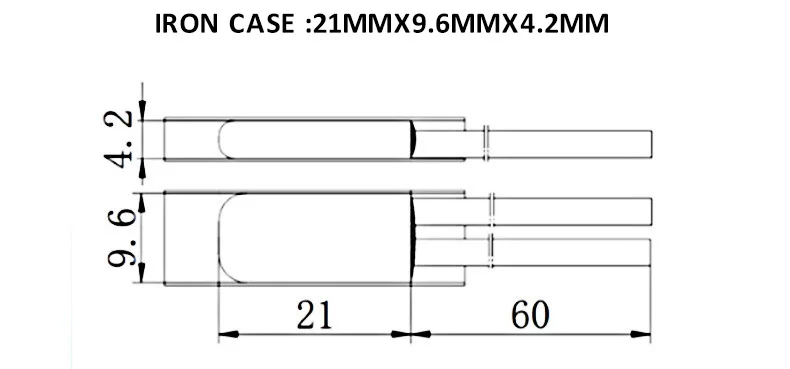

    Small size for easy installation

    The internal resistance is less than 50mΩ

    Quick acting bimetal sheet, fast reaction speed

    Life span up to 10000 times

    Anti-vacuum dipping technology

    Current temperature dual protection

    Leads can be customized upon request

    The shell of the thermal protector has no burr, crack, deformation, corrosion and other phenomena

    The mark is correct, clear and durable

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    Rated electrical performance: 16A/20A 250VAC
    Action Temp: 70~150°C ± 5°C, in steps of 5°C.
    Electrical strength:: AC1500V/min, no breakdown or flashover phenomenon

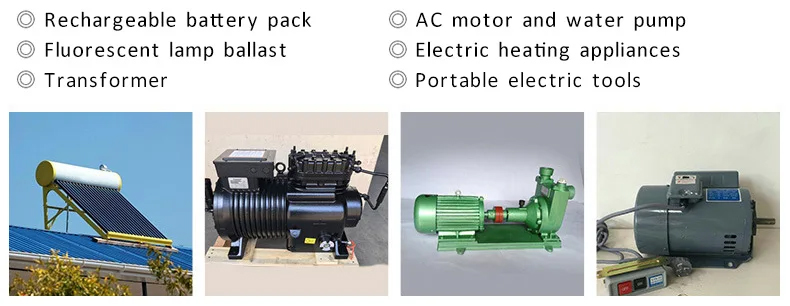

    Main Application Scope: 550W-1500W motors, electrical appliances (water pumps, oil pumps, compressors, solar water heaters, etc.), PTC heaters.

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    Code
    Open Temp
    Reset Temp
    Code
    Open Temp
    Reset Temp
    70
    70±5℃
    45±15℃
    115
    115±5℃
    75±15℃
    75
    75±5℃
    50±15℃
    120
    120±5℃
    80±15℃
    80
    80±5℃
    55±15℃
    125
    125±5℃
    85±15℃
    85
    85±5℃
    55±15℃
    130
    130±5℃
    90±15℃
    90
    90±5℃
    60±15℃
    135
    135±5℃
    95±15℃
    95
    95±5℃
    65±15℃
    140
    140±5℃
    100±15℃
    100
    100±5℃
    65±15℃
    145
    145±5℃
    105±15℃
    105
    105±5℃
    70±15℃
    150
    150±5℃
    110±15℃
    110
    110±5℃
    75±15℃

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch

    BK20 150c degree 20a current heat overload dual protection thermal protector temperature switch
