JUC-31F Reliable Thermal Overload Protection For Circuit Boards
Temperature Switch 24DC 4A

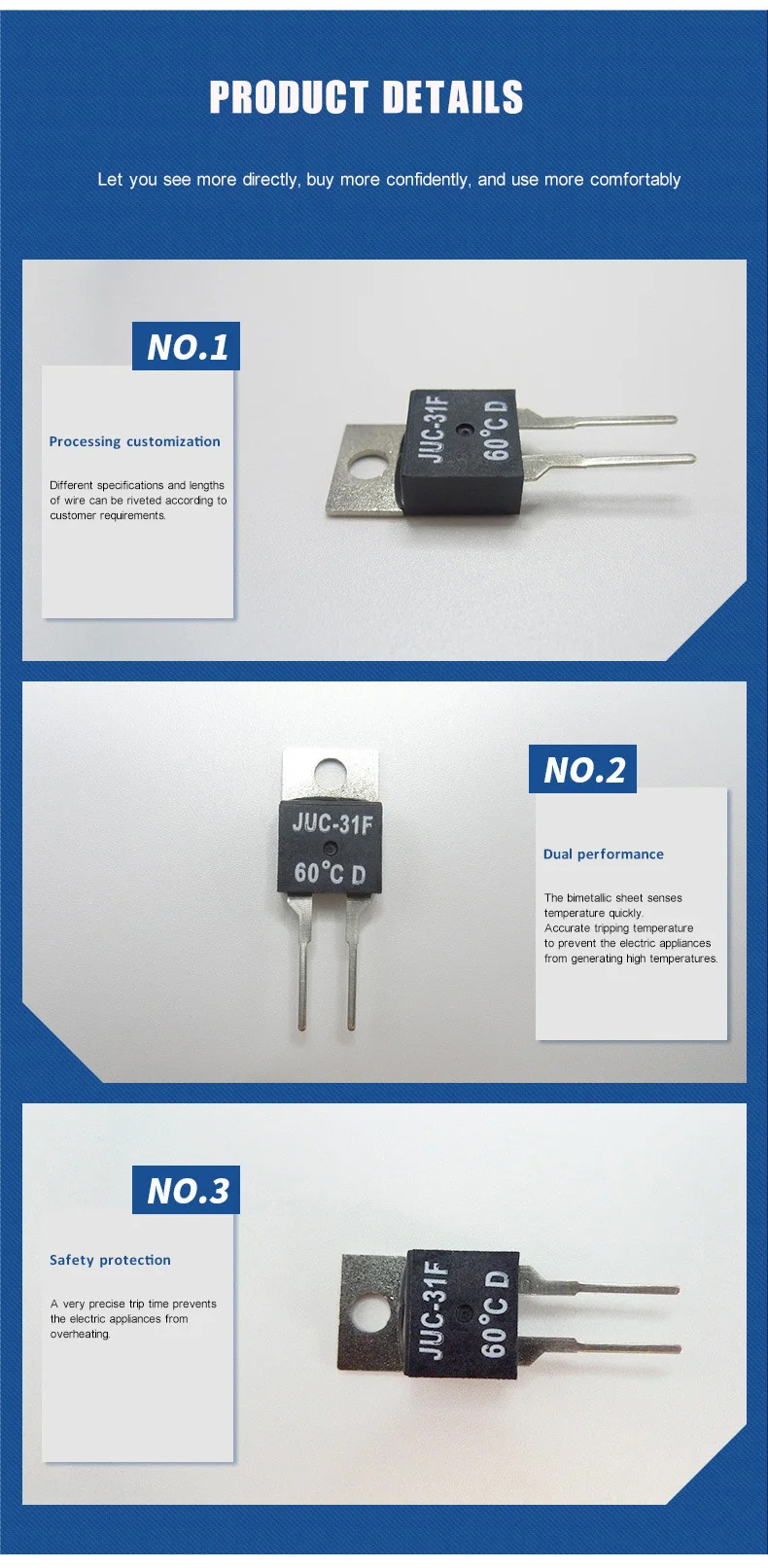

Product Description
The JUC-31F series thermal protector adopts bimetallic sheets with
a certain geometric shape, without the need for auxiliary
mechanisms. It relies solely on the self sensing and current
thermal effects of the bimetallic sheets to quickly change the
state of the bimetallic components, directly driving the contacts
to automatically cut off and connect the circuit, playing a role in
overheating and overload protection.
The JUC-31F series touch temperature controller is sensitive and
reliable and suitable for temperature control or thermal overload
protection on circuit boards, etc.
Dimension:

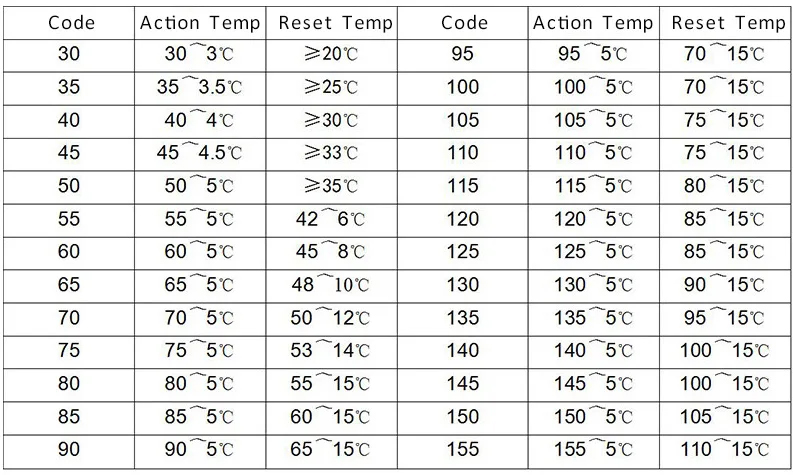

Rated Action Temperature:
Application:
Note:
1 , using the contact temperature installation should be charged
with the metal cover up snapping apparatus mounting surface , to
ensure that the temperature effect , should be coated with thermal
grease or other similar thermal properties of the medium in the
surface temperature .
2 , the installation can not cover up the top collapsed , loose or
deformed , so as not to affect performance.
3, can not allow the liquid to penetrate the internal temperature
may not make the shell cracks , are not free to change the shape of
the external terminals.
4 , the product is not greater than 5A current in the circuit ,
chose the copper cross-section 0 5-1 mm 2 wire connection ; . No
greater than 10A current in the circuit , chose the cross-section
of 0.75-1.5 mm 2 copper wire connection.
5, the product should be less than 90% relative humidity , ambient
temperature is below 40 °C ventilated, clean, dry , non-corrosive
gases stored in the warehouse .
KSD-01F classification , in accordance with the temperature to
points, can also be classified according to the material , you can
also follow the installation way points.
According to the nature of the action : the action can be divided
into normally open(H Type) and normally closed(D type).
Tag:
Temperature Switch, Thermal Overload Switch, Thermal Switch
